Portable tools and equipment by World Prime Services for splicing, heating and welding conveyor belts — from the temperature splice press to the belt skiving machine and the PTFE belt welding machine.

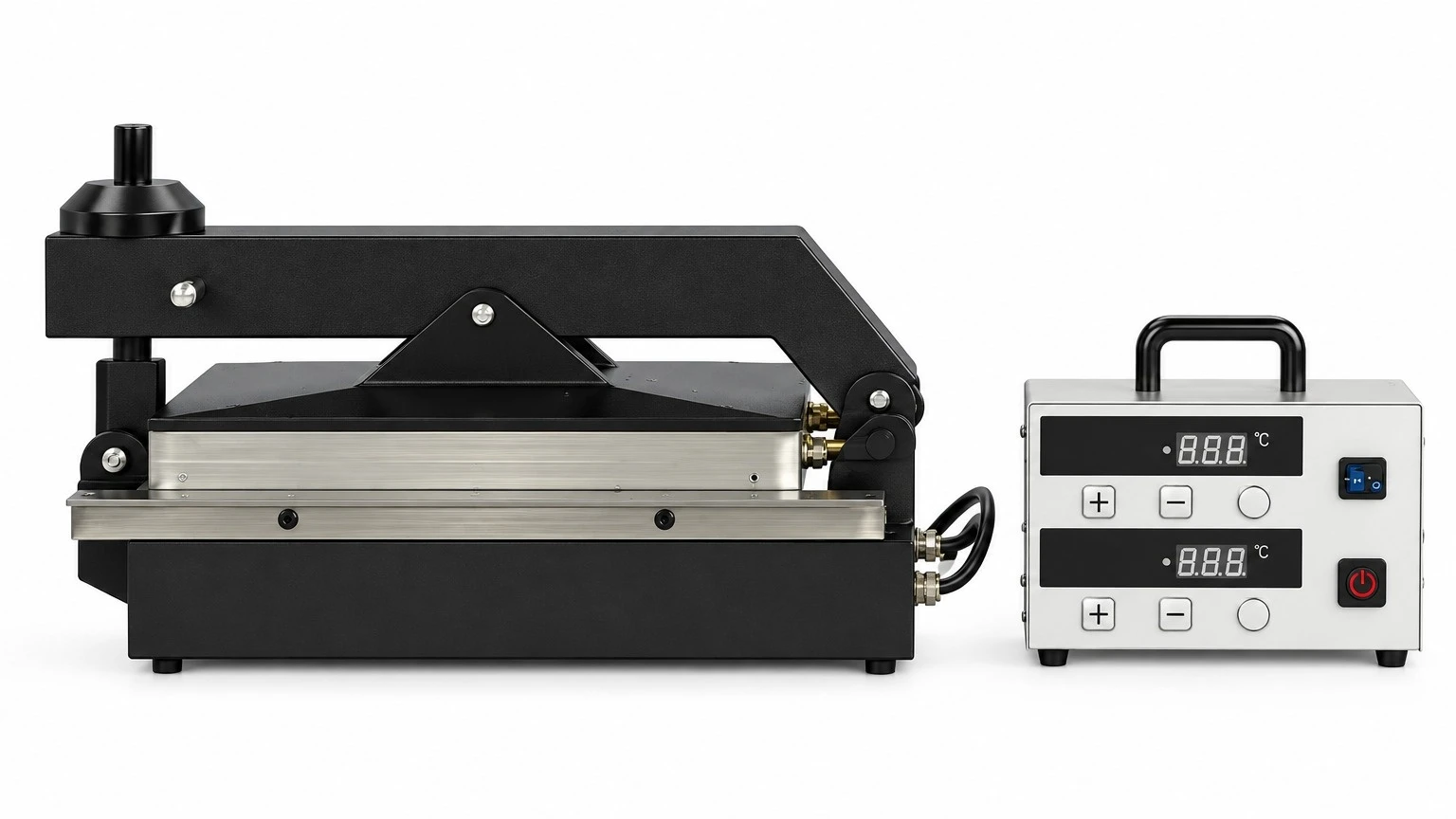

Belt Splice Press With Temperature Controller

Belt Splice Press With Temperature Controller
ModelQD200*200QD200*400
Max belt width200mm400mm
Heating width200*200mm200*400mm
Max temperature200°C
Heating platenDouble side heating (independent temp. control)
Cooling methodBy air compressor
Voltage110V/220V220V
Net weight24kg66kg
Package dimension450*350*510mm640*360*570mm
Package weight35kg77kg

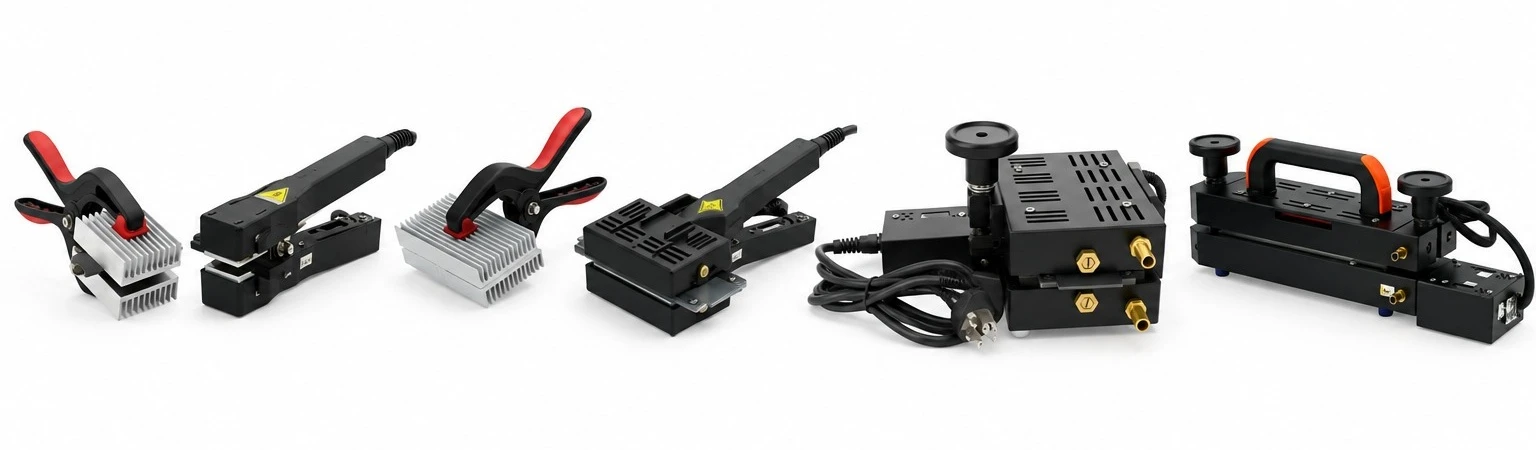

Heating Splicing Clamps For Melt Splices

Heating Splicing Clamps For Melt Splices
ModelQD50*50BQD85*150BQD120*180QD90*270
Max belt width42mm75mm110mm260mm
Heating width50*50mm85*150mm120*180mm90*270mm
Standard mold width11/12mm50mm80mm100mm
Max temperature200°C
Voltage110V/220V220V
Heating platen Double side heating Double side heating Double side heating (independent temp. control)
Cooling method Cooling clamp By air compressor
Net weight1.6kg3.1kg5.9kg10.1kg
Package dimension390*130*320mm450*180*360mm540*200*330mm680*260*330mm
Package weight3.3kg5.6kg8.6kg15.1kg

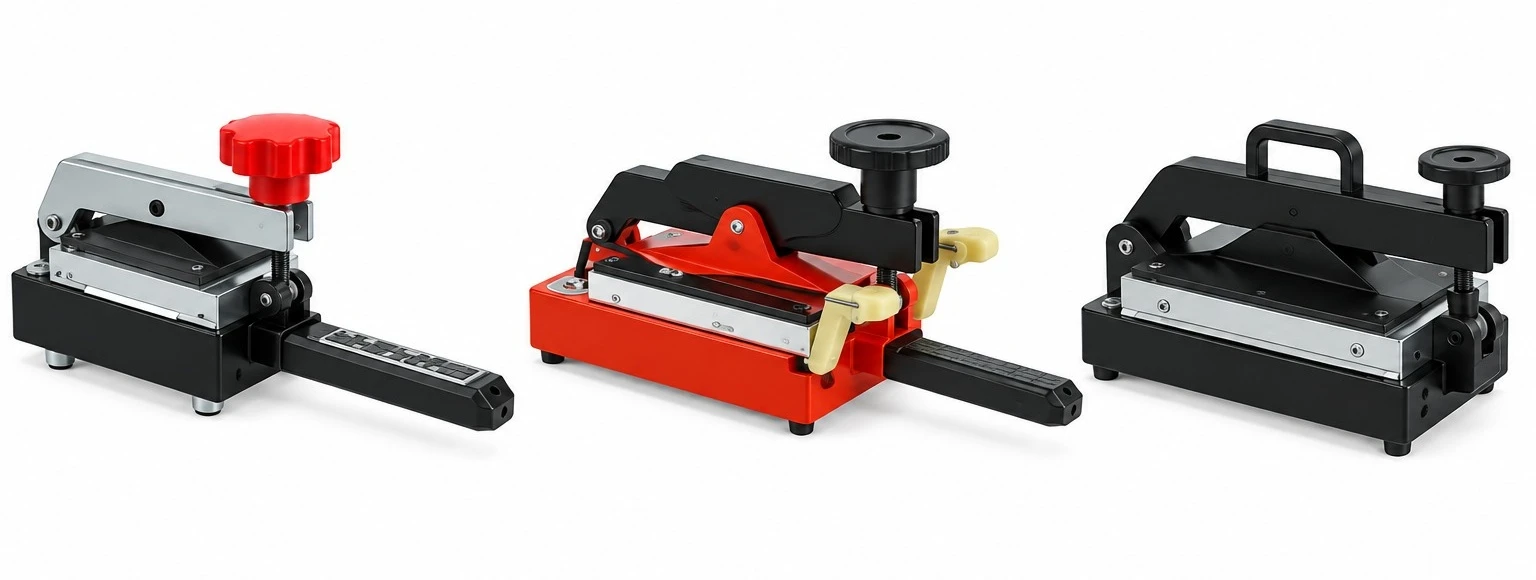

Classic Press With Fixed Temperature

Classic Press With Fixed Temperature
ModelQD60*80SQD100*150SQD160*250S
Belt width80mm150mm250mm
Thickness3mm
Heating width60*80mm100*150mm160*250mm
Voltage110V/220V220V
Fixed temperature105°C115°C120°C
Net weight1.4kg5.1kg14.5kg
Package dimension290*70*110mm390*150*160mm450*260*300mm
Package weight1.7kg5.8kg20kg

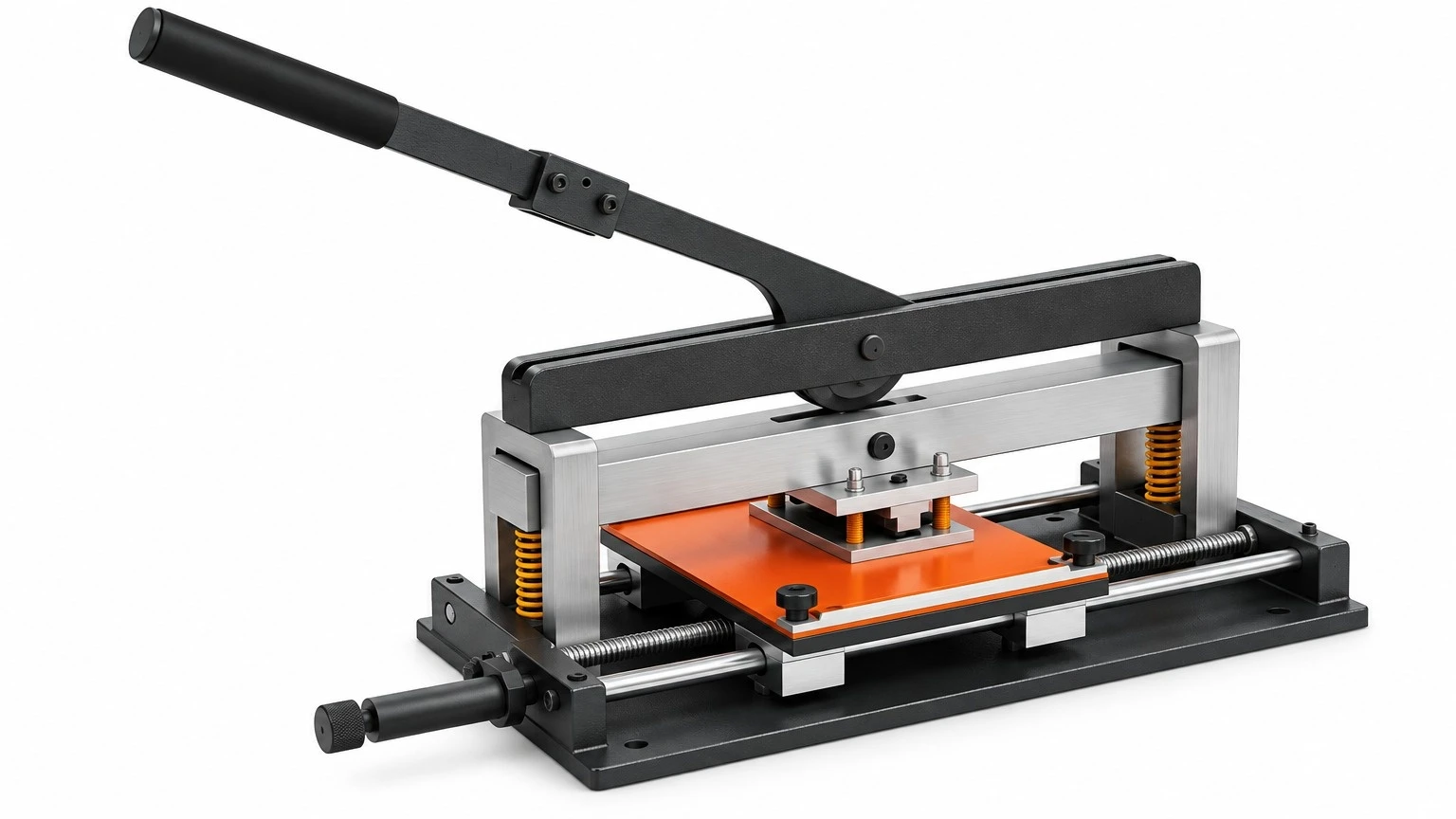

Manual Finger Punching Tool TC100-200

Manual Finger Punching Tool TC100-200
ModelTC100TC200
Max belt width100mm200mm
Finger size120×10mm, 100×10mm, 80×10mm, 60×10mm
Net weight32kg44kg
Package dimension540*360*500mm660*360*500mm
Package weight43kg56kg

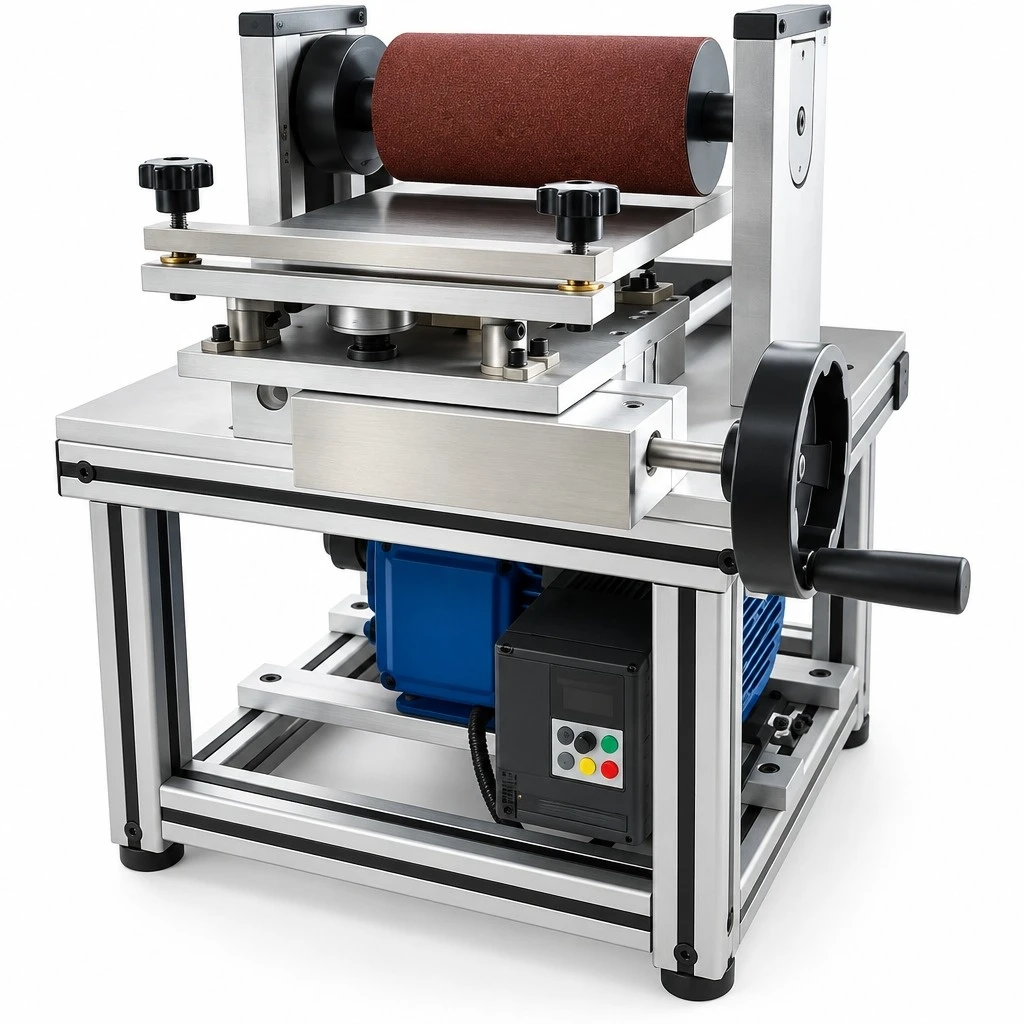

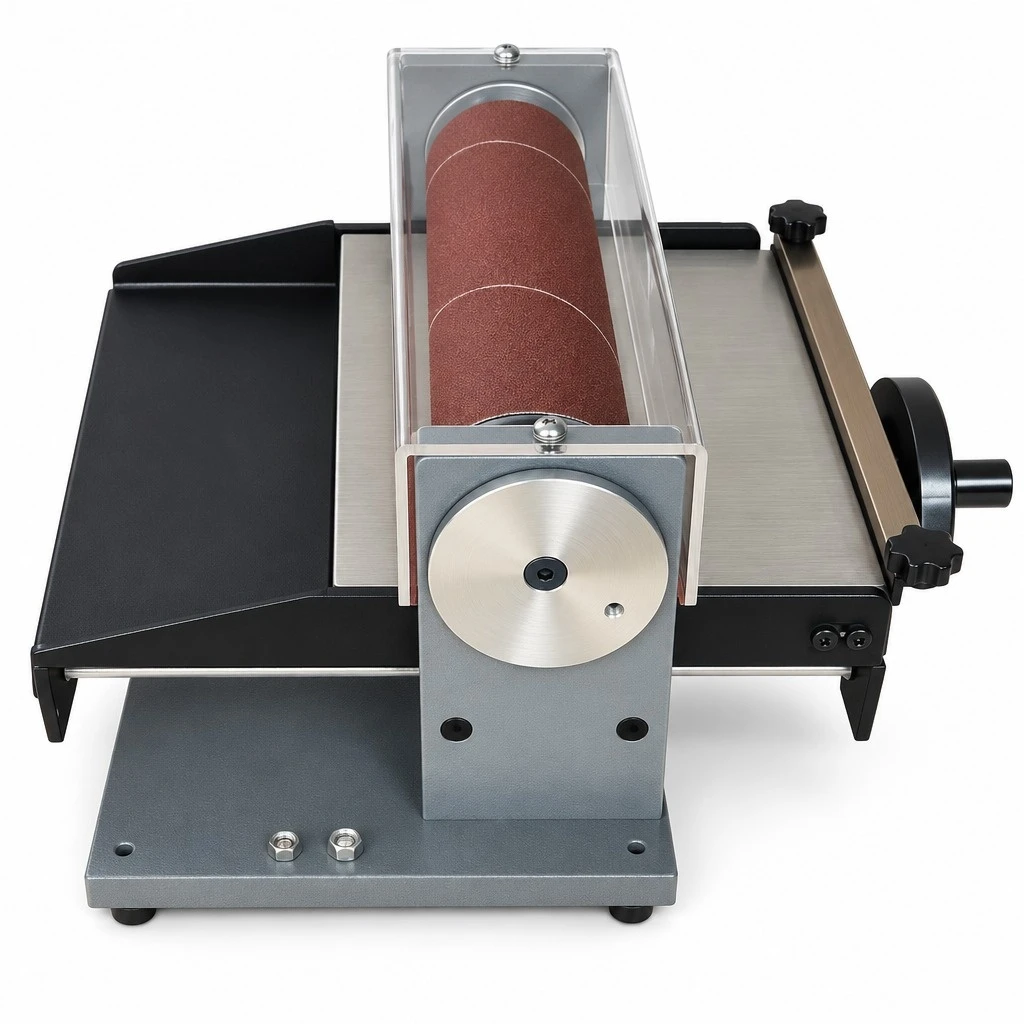

Transmission Belt Skiving Machine SD150-600

Transmission Belt Skiving Machine SD150-600
  • Manual type
  • Meets your demands for different belts in different thicknesses
  • For belt thickness: 1–6mm
  • Rotational speed: 650 r/min
  • Working voltage: 220V, single phase
ModelSD150SD200SD300SD400SD500SD600
Power0.75KW1.1KW2.2KW2.2KW3.2KW3.3KW
Max belt width150mm200mm300mm300mm500mm600mm
Skiving length100mm150mm150mm150mm150mm150mm
Machine bodyAluminum alloy body; with frequency inverter and speed control.
Net weight35kg57kg100kg130kg145kg159kg
Package dimension480*480*600mm560*490*680mm660*590*780mm690*660*780mm790*660*780mm890*660*780mm
Package weight46kg72kg129kg150kg175kg190kg

SD200P — Portable type

  • Max belt width: 200mm
  • For belt thickness: 1–6mm
  • Recommended drill: GBM 13 RE Bosch
  • Package dimension: 450*430*310mm
  • Net weight / gross weight: 18kg / 26kg

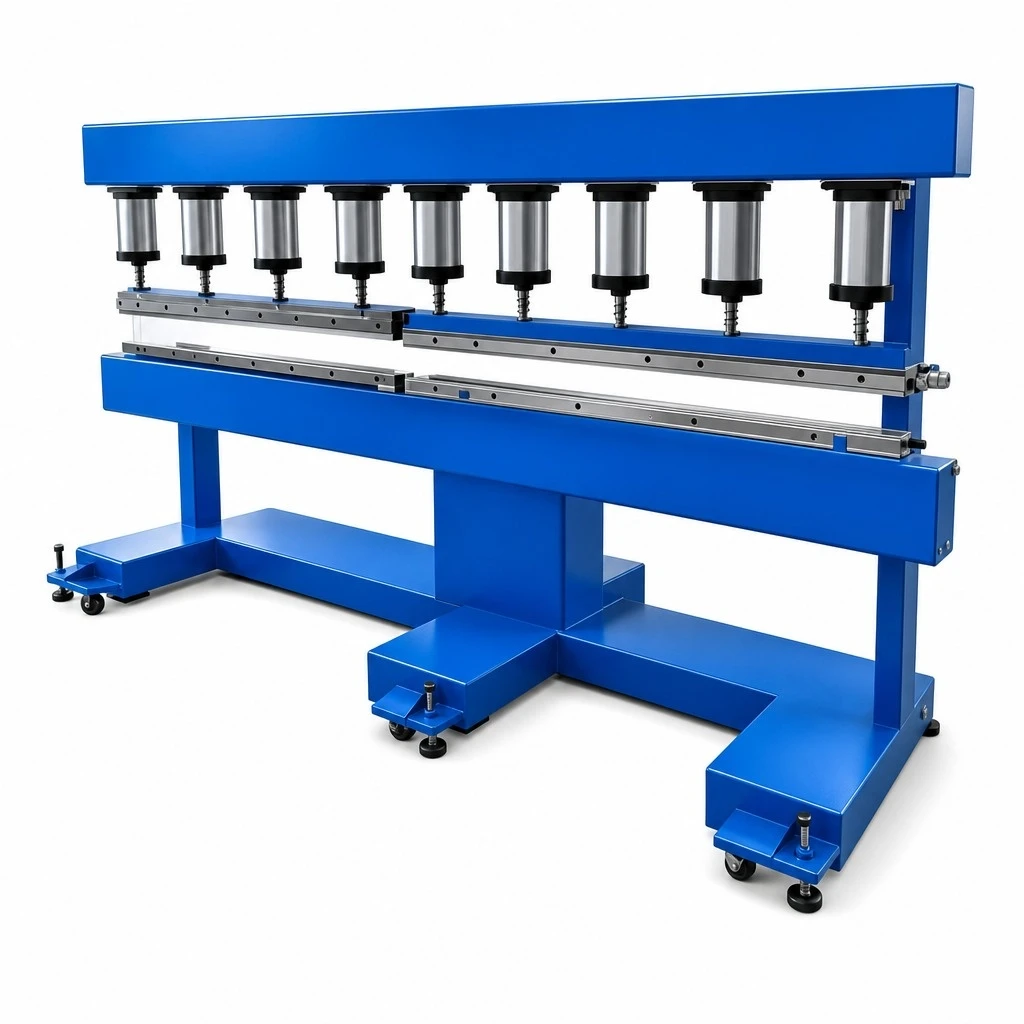

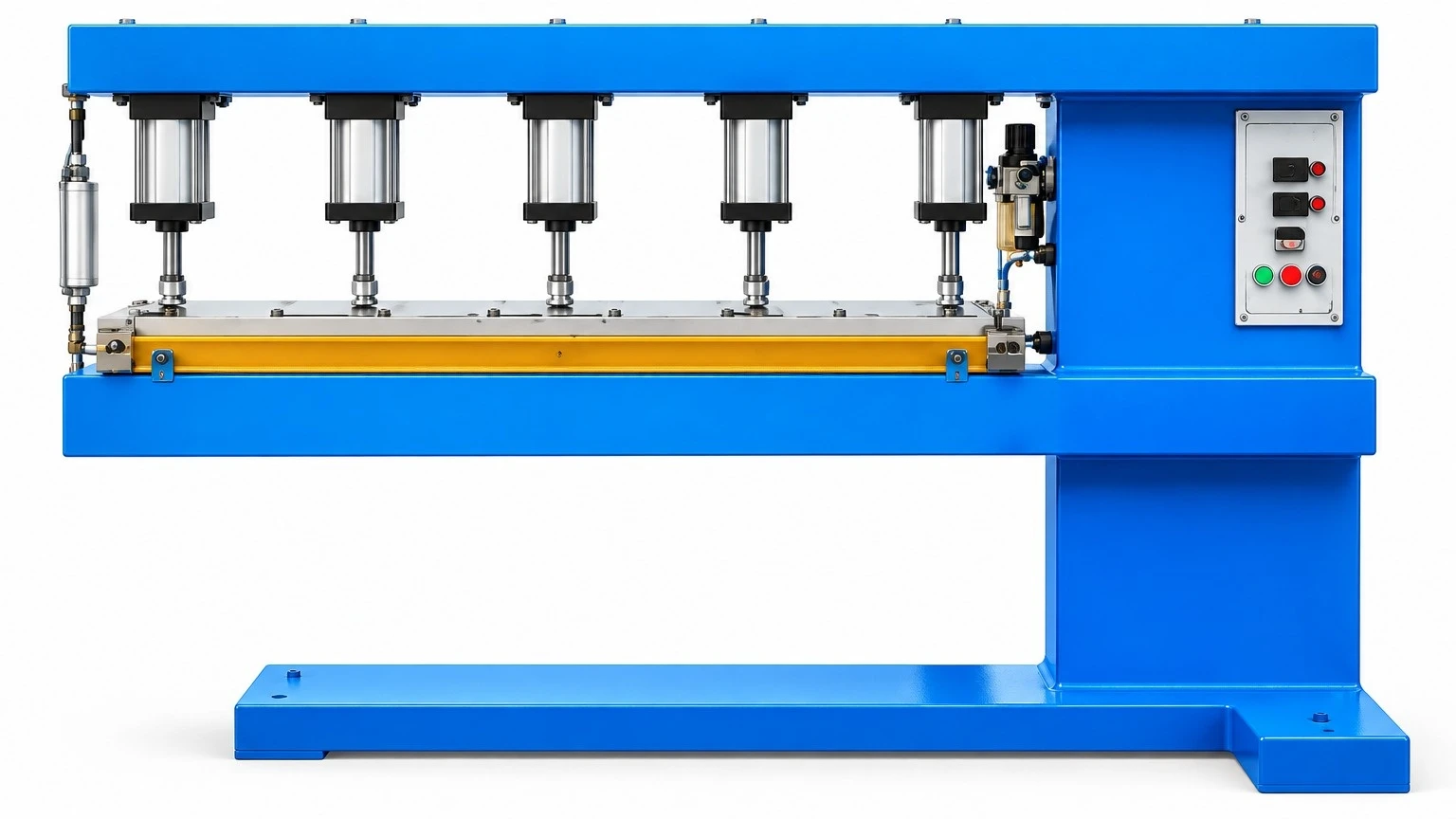

PTFE Belt Welding Machine QD130-200

PTFE Belt Welding Machine QD130-200

*Remark: other sizes can be customized, such as 400mm, 500mm, 600mm.

Model QD130-7PQD150-7PQD200-7PQD130-10PQD150-10PQD200-10P
Heating dimension70x130070x150070x2000100x1300100x1500100x2000
Voltage380V, 3-phase
Power0.6KW0.9KW1.2KW0.6KW0.9KW1.2KW
Temperature range50~400°C
Delay time0~99s
Pressure0.3~0.5 Mpa
Net weight460kg500kg600kg460kg500kg600kg
Package dimension1900x1000x1780mm2000x1000x1780mm2300x1000x1780mm2000x1300x1050mm2200x1300x1050mm2700x1300x1050mm
